Vertical Type Mixer SH-VM301 - SH-VM307｜Plastic Pellet and Recycled Material Mixer
Shuen Li Vertical Type Mixer SH-VM301 - SH-VM307 uses a spiral circulated mixing method to mix materials more evenly and quickly. The machine is suitable for crushed materials, new and recycled plastic pellets, raw materials, color masterbatch and additive blending. With motor power from 3HP to 30HP and capacity from 500kg to 10 ton, it supports plastic processing, recycling and material preparation applications.
Vertical Type Mixer

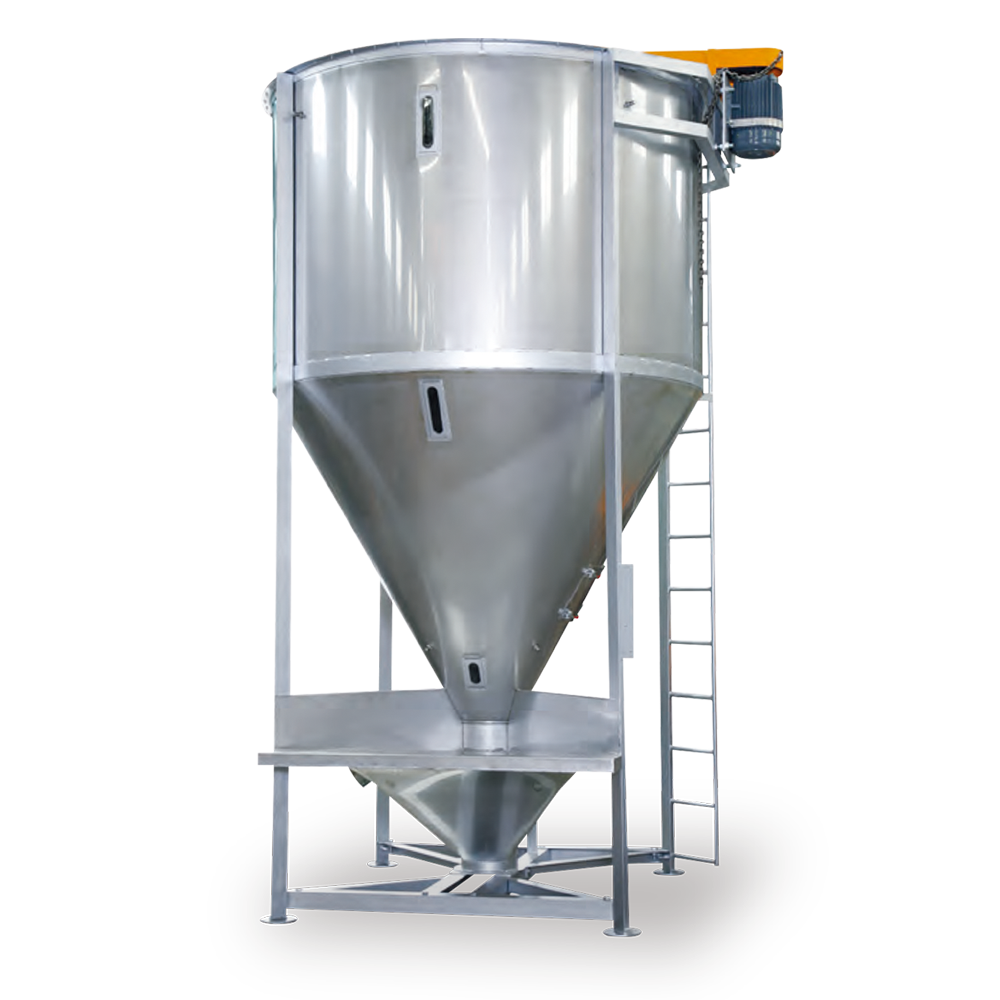

Vertical Type Mixer (Heater type is optional) SH-VM301 - SH-VM307
Mixer Series
Vertical Type Mixer
SH-VM301 - SH-VM307
Product Feature
Employs the spiral circulated mixing method to enable material to be mixed more evenly and quickly.
Suitable for mixing of crushed materials, new and recycled plastic pellets, and raw material.
Specification
| CE Model | Unit | SH-VM301 | SH-VM302 | SH-VM303 | SH-VM304 | SH-VM305 | SH-VM306 | SH-VM307 |
|---|---|---|---|---|---|---|---|---|
| Motor | hp | 3 | 5 | 5 | 7.5 | 10 | 15 | 30 |
| Capacity | kg/hr | 500 kg | 1 ton | 1.5 ton | 2 ton | 3 ton | 5 ton | 10 ton |
| Weight | kg | 320 | 450 | 550 | 680 | 900 | 1450 | 3500 |
| Dimension | mm | 1200x1200x2440 | 1200x1200x3320 | 1480x1480x3250 | 1780 x 1850 x 3400 | 1780x1850x4080 | 2080x2080x5180 | 2800x2800x5660 |
